NTMPA-2018010

NTMPA-2018010

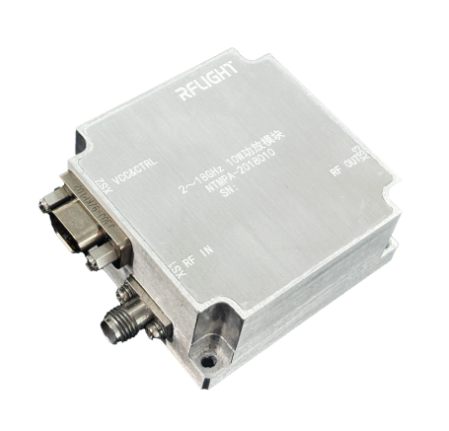

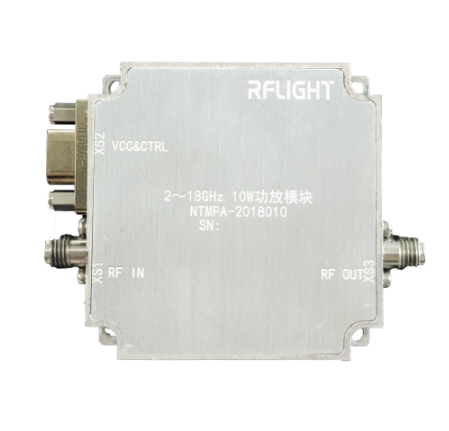

NTMPA-2018010 Front \ driver power amplifier module
  • Ultra-wide band, high gain
  • Standardization, generalization, miniaturization structure
  • Perfect protection function, high reliability
Product Description Technical indicators

Product Characteristics

It adopts an all-solid-state solution, integrates voltage, current, temperature detection and switching functions, and has high reliability. It has been widely used in wireless communication, medical treatment, electromagnetic compatibility and other fields.

Specific parameter

Specific parameter：

  1. Frequency: 2-18GHz
  2. Output power: ≥10W
  3. Power gain: ≥39dB
  4. Gain flatness: ≤±3dB
  5. Power supply: ≤28V/2.3A
  6. Size: 48mm×48mm×20.5mm
  7. Weight: ≤0.13kg
